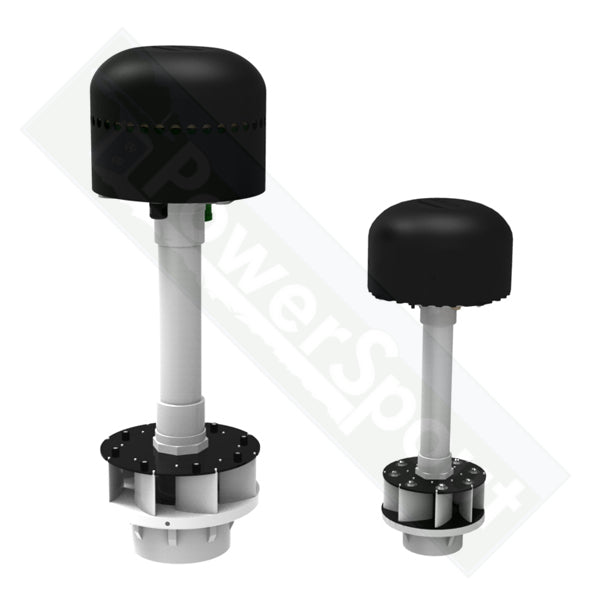

PowerSpout LH Mini Twin Pack - Hydro Turbine

The LH-mini is a new half size LH turbine. Please note that the installation manual for the LH-mini is not yet complete, but that the installation process is very similar to our LH turbine. Please refer to the LH manual in our INDEX until the new LH-mini manual is complete.

The PowerSpout LH-mini is a highly efficient propeller turbine. On a suitable hydro site it can produce up to 800W 24/7, 365 days a year. If your water resource fluctuates seasonally then these two LH Mini turbines can be more efficient than one full size LH turbine.

Specifications (for each turbine):

• Static head range: 1 to 5m (3 – 16 feet)
• Maximum flow/turbine: 32 l/s
• Minimum flow/turbine: 14 l/s
• Dimensions: Diameter 300mm x length 800
• Maximum power: 800W
• Maximum current rating 10 amp
• LH-mini for use with approved MPPT charge controllers or GTI's only

A twin pack order cannot be combined with any other goods on this site as there is no available space in the carton.

All twin packs receive free DHL Insurance.

PowerSpout turbines are tailor made products which match your unique resource and personal requirements. We sell our turbines through a network of dealers because their knowledge and experience will help you create a successful system and avoid costly mistakes. We do offer some DIY options for those who are interested in going it alone.

Ideally before contacting a dealer you will need to collect your site data, assess your energy needs and complete a calculation. If you need help doing this please read our getting started guide.

Refer to PowerSpout Document Index Links for a complete index of documents.
